Valve selection table
Forged ball, gate and check valves from DN15 to DN600, Class 150 to Class 2500. Everything is machined and tested in Sheffield. Find your line in the table and download the drawing.
STANDARD CONFIGURATION
Standard bore DN200 Class 600, F316 body, stellite seat, 14 week lead. Reduced bore available on the same lead time.
1911
SAME WORKS
3 days
QUOTE TURNAROUND
SIZE
CLASS
BODY MATERIAL
SEAT
LEAD TIME
SIZE
DN15 – DN50
CLASS
Class 150 – 800
BODY MATERIAL
F316 forged
SEAT
PTFE / PEEK
LEAD TIME
6 weeks
SIZE
DN15 – DN50
CLASS
Class 1500 – 2500
BODY MATERIAL
F316 / duplex F51
SEAT
PEEK
LEAD TIME
9 weeks
SIZE
DN80 – DN150
CLASS
Class 150 – 600
BODY MATERIAL
Carbon steel LF2
SEAT
Stellite 6
LEAD TIME
8 weeks
SIZE
DN80 – DN150
CLASS
Class 900 – 1500
BODY MATERIAL
F316 forged
SEAT
Stellite 6
LEAD TIME
11 weeks
SIZE
DN200
CLASS
Class 600
BODY MATERIAL
F316 forged
SEAT
Stellite 6
LEAD TIME
14 weeks
SIZE
DN250 – DN400
CLASS
Class 150 – 300
BODY MATERIAL
Carbon steel A105
SEAT
Stellite 6
LEAD TIME
12 weeks
SIZE
DN250 – DN400
CLASS
Class 600 – 900
BODY MATERIAL
Duplex F51
SEAT
Stellite 6
LEAD TIME
16 weeks
SIZE
DN450 – DN600
CLASS
Class 150 – 300
BODY MATERIAL
Carbon steel A105
SEAT
Stellite 6
LEAD TIME
18 weeks
SIZE
DN450 – DN600
CLASS
Class 600
BODY MATERIAL
Inconel 625
SEAT
Stellite 21
LEAD TIME
22 weeks
NOTE
Standard bore DN200 Class 600, F316 body, stellite seat, 14 week lead. Reduced bore available on the same lead time. Anything outside the table is quoted on the drawing, not refused.
02 · STANDARDS HELD
Approvals, with the certificate numbers
APX 6D, API 607 Fire Safe, PED 2014/68/EU Module H, ATEX where specified, and Meridian Register type approval for marine service. Every certificate is current and every number below can be verified with the issuing body before you place an order.
APX 6D
Licence 6D-0421
Pipeline ball, gate and check valves. Monogram held continuously since 1979.
API 607 Fire Safe
Report FS-1187-C
Soft and metal seated ball valves, tested to the sixth edition burn schedule.
PED 2014/68/EU
Module H · NB 0038 · H-2291-04
Full quality assurance. Annual surveillance audit, no open findings.
ATEX 2014/34/EU
File ATEX/CVW/117
Where specified. Category 2G non-electrical assessment for actuated sets.
Meridian Register
Type approval LR/TA/22/00418
Marine service. Accepted for hull and machinery on classed tonnage.
ISO 9001:2015
Certificate GB-19-0044
The works quality system. Certified since the first edition in 1987.
03 · MATERIALS
What we forge, and what we will not cast

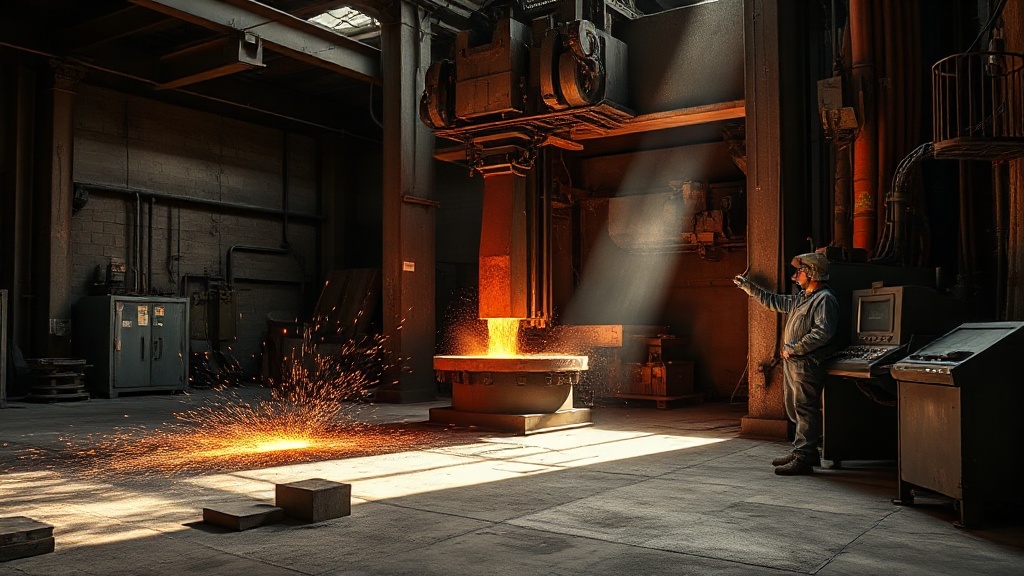

We forge carbon steel, F316, duplex and Inconel 625. We do not supply cast bodies for anything above Class 300, on principle, and have not since 1974.
Carbon steel
A105 · LF2 · LF3
Stainless
F316 · F316L · F304
Duplex
F51 · F53 super duplex
Nickel alloy
Inconel 625 · Monel 400
SINCE 1974
No cast body above Class 300. A casting hides its porosity until the line is up to pressure; a forging does not. It has cost us work and we have kept the rule.
04 · TESTING REGIME
Nothing leaves the bay untested

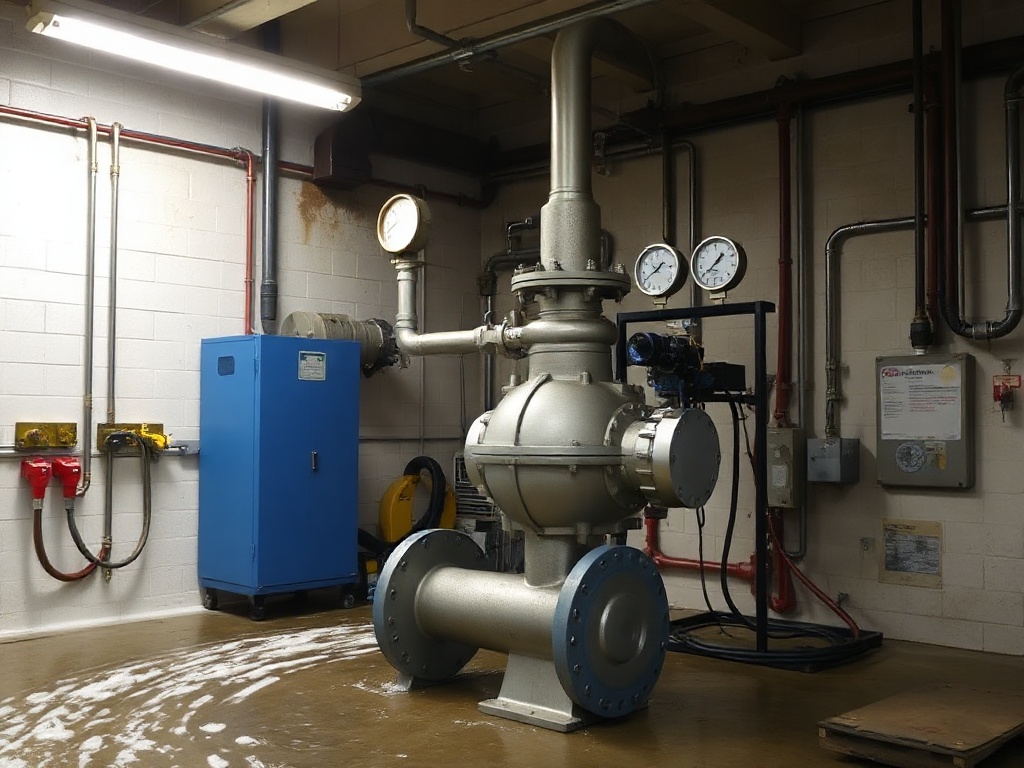

Every valve gets a hydrostatic shell test at 1.5x rating, a seat test to API 598, and a witnessed certificate with the heat number traceable to the billet.
01
Hydrostatic shell
Every valve, every time, at 1.5x the rated pressure held to the API 598 duration with no visible leakage through the body, bonnet or gland.
02
Seat closure
Seat test to API 598, high pressure and low pressure gas, both directions on bidirectional valves. Rate recorded, not just passed.
03
Cryogenic
BS 6364 immersion testing down to −196 °C in the cryogenic bay, with extended bonnet valves cycled cold before the leak count is taken.
05 · SECTORS SERVED
Refineries, water, marine
Three trades, one order book. Each line below is a real job with a real reference we will put you in touch with, on request, once a quotation is live.
Refineries
Humber, 2024
Forty-two DN200 Class 600 F316 ball valves for a hydrotreater revamp, stellite seated, delivered inside the 14 week standard lead.
Water authorities
Kielder transfer, 2023
DN600 Class 150 carbon steel gate valves on raw water transfer, WRAS listed internal coating, 60 year design life.
Shipbuilders
Clyde yard, 2025
Eighteen DN80 Class 800 duplex ball valves for a fuel transfer main, Meridian Register type approved and witness tested at the yard.
06 · SPARES
Forty year part availability
We hold or can remake spares for every valve we have shipped since 1986. Send us a nameplate photograph and we will identify it within two working days.
1986
Earliest shipment we still stock spares for
2 days
Nameplate photograph to positive identification
40 years
Guaranteed part availability from date of shipment
07 · DRAWINGS AND CAD
General arrangements and solid models
General arrangements as PDF, solid models as STEP AP214 and DWG. No registration wall and no sales call afterwards. If the size you need is not listed, ask and we will cut the drawing from the model.
DRAWING
FORMAT
FILE
08 · ENQUIRIES
Request a quotation
Technical enquiries go straight to an engineer, not a form queue. Quotations returned in 3 working days for standard configurations.
Send the line size, pressure class, medium and temperature. A P&ID extract or a tag list is enough to start; we will come back with the seat and trim recommendation, not just a price.
THE WORKS
Carrow Valve Works
Attercliffe Road
Sheffield S9 3RJ
United Kingdom
Works open 07:00–17:00, Monday to Thursday, 07:00–13:00 Friday. Witness testing is booked by the week and visitors are welcome on the test bay floor.
